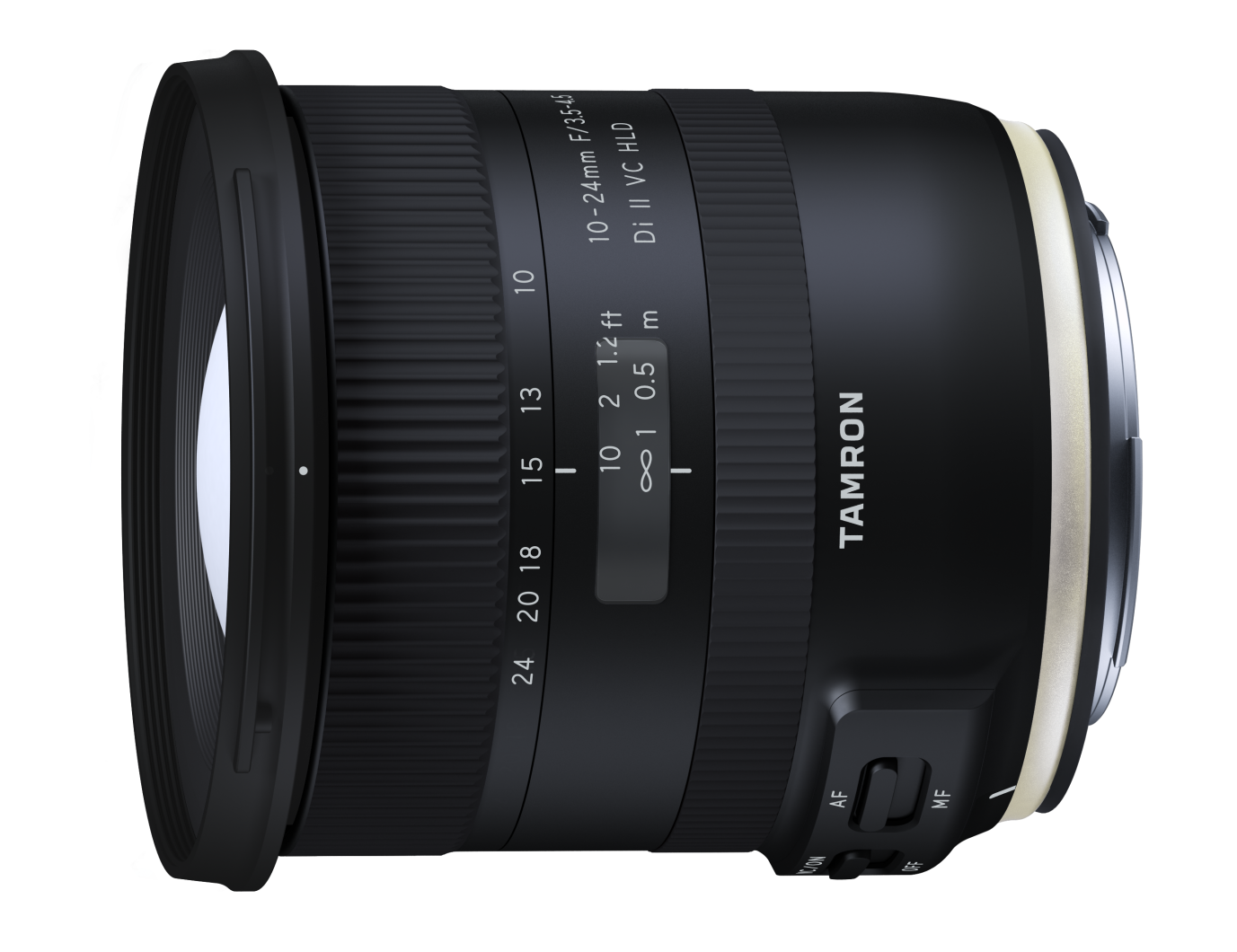

10-24mm F/3.5-4.5 Di II VC HLD

(Model B023)

Expand your options with the only compact, ultra-wide-angle zoom lens offering superior optical performance and Vibration Compensation.

Enjoy the full measure of wide-angle expression.

Experience the complete joy of shooting with a compact, ultra-wide-angle zoom

This ultra-wide-angle zoom lens for APS-C DSLR cameras offers the finest of all Tamron worlds: best-in-class* 10-24mm focal length range (the 35mm equivalent of 16-37mm), the compact size of our previous SP AF10-24mm F/3.5-4.5 Di II LD Aspherical [IF] (Model B001), plus vastly improved optical performance. It also includes state-of-the-art Tamron technology like VC (Vibration Compensation), a new HLD (High/Low torque-modulated Drive), Fluorine Coating, and Moisture-Resistant Construction. Combine this with exceptional resolution on everything from detailed landscapes to casual snapshots and you have a next-generation, wide-angle zoom that’s ready to go wherever your photographic vision takes you.

* Among ultra-wide-angle zoom lenses for APS-C DSLR cameras (As of January, 2017. Source: Tamron)

Key Features

Excellent optical performance across the entire zoom range

The optical design includes 16 elements in 11 groups. A new large aperture aspherical lens and LD (Low Dispersion) lens elements deliver exceptional resolution across the complete zoom range— combined with stable imaging across the entire frame. The lens also corrects comatic and transverse chromatic aberration, as well as distortion that often crops up on other wide-angle lenses. Together with Tamron’s unique BBAR (Broad-Band Anti-Reflection) Coating, which improves light transmission and suppresses reflection and dispersion on the lens surface, this new ultra-wide-angle zoom has been entirely reimagined to control flare and ghosting. The result: clear, crisp images, every time.

Focal length: 10mm  Exposure: F/5.6   1/45sec  ISO400

Focal length: 10mm  Exposure: F/3.5  1/6sec  ISO100

VC lets you go wherever your vision takes you

Tamron’s unique VC (Vibration Compensation) technology makes it easy to enjoy handheld, wide-angle shooting, even in low-light environments such as evening and indoors. While maintaining the compact design of our previous Model B001, Tamron has optimized the actuator and control algorithm in order to incorporate VC into our new Model B023. Now you can unleash the power of high quality imaging, without worrying about your images being spoiled by the jittery effects of handheld shooting.

HLD meets highly precise AF

HLD meets highly precise AF

With this lens, Tamron introduces the HLD (High/Low torque-modulated Drive) AF drive system. The excellent driving power of the all-new HLD enables stable and precise focusing, even with the large focusing lens elements used on Model B023. What’s more, the Full-time Manual Focus override allows you to make fine adjustments—without having to switch from AF to MF mode.

High performance packed into a compact body

A shortened overall length vastly improves optical performance while maintaining a compact size—even with advancements such as VC and the newly developed HLD. When combined with an APS-C DSLR camera, this lens packs a world of performance into a lightweight, portable body.

The beauty is in the details

With this new ultra-wide-angle zoom lens, Tamron has merged beautiful craftsmanship with intuitive design. From the outer casing hugging the contours of the lens, to the deftly worked Luminous Gold brand ring and meticulous construction, the quality of this lens is second to none. Even details like the shape of the switch box, distant-scale window, and the precision and stability of the metallic mount reveal a commitment to functionality, as well as design.

The result is a next-generation lens that’s easy to use, yet loaded with cutting-edge technology.

Specifications

Specifications

Model B023
Focal Length 10-24mm
Maximum Aperture F/3.5-4.5
Angle of View (diagonal) 108°44′-60°2′
(for APS-C format)
Optical Construction 16 elements in 11 groups
Minimum Object Distance 0.24m (9.4 in)
Maximum Magnification Ratio 1:5.3
Filter Size Φ77mm
Maximum Diameter Φ83.6mm
Length* 84.6mm (3.3 in) Canon
82.1mm (3.2 in) Nikon
Weight 440g (15.5 oz) Canon
440g (15.5 oz) Nikon
Aperture Blades 7 (circular diaphragm)
Minimum Aperture F/22-29
Image Stabilization Performance 4 Stops
(CIPA Standards Compliant)
For Canon: EOS-80D is used
Nikon: D7200 is used
Standard Accessories Front Cap, Lens hood
Compatible Mounts Canon, Nikon

Specifications, appearance, functionality, etc. are subject to change without prior notice.

* Length is the distance from the front tip of the lens to the lens mount face.

MTF

Optical Construction (11 elements in 16 groups)
